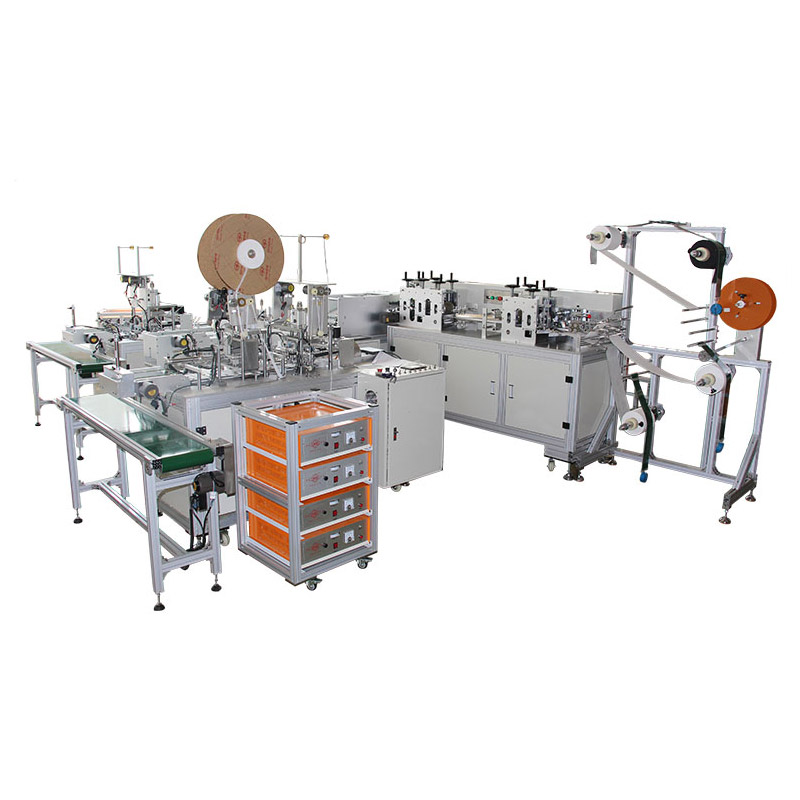

Full-automatic flat disposable mask production line
Full-automatic flat disposable mask production line
Full-automatic flat disposable mask production line

Full-automatic flat disposable mask production line

  • BrandE.P HSJX-MKZ-02
  • OriginHenan,China
Details

Full-automatic flat disposable mask production line

Product Description

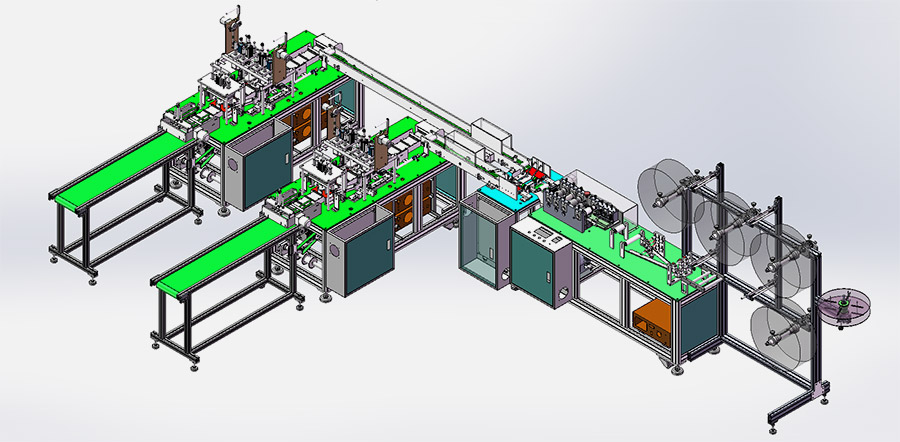

Structure drawing of mask production line

Structure drawing of mask production line

Medical surgical mask production line consists of a mask pressing machine and two mask ear-loop machines. When the semi-finished masks come out of the mask pressing machine, they will be conveyed to the two mask ear-loop machines. After this process, a surgical mask will be made.

Sample

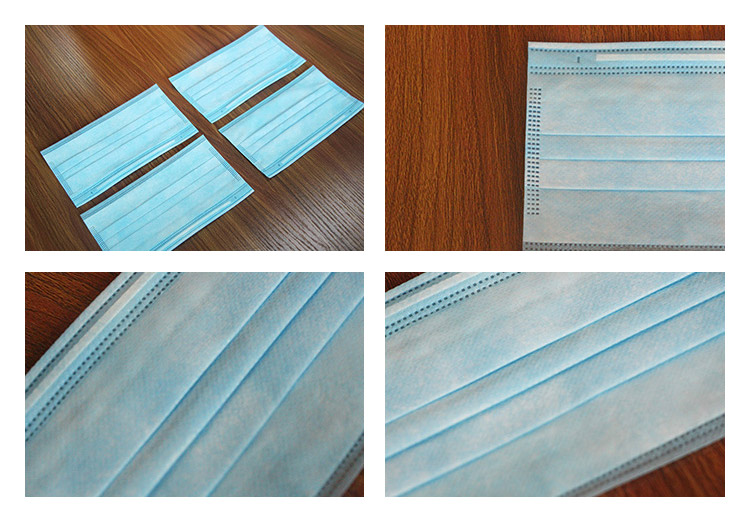

Medical surgical mask samples

Medical surgical mask samples

Material

Non-woven fabric

Non-woven fabric

  1. Dark non-woven fabric: 25g/m2, 175mm(L)*95mm(W);
  2. Light colored non-woven fabric;
  3. Nose-bridge bars;
  4. elastic ear loops.

Features of the mask making machine

  1. High stability, low failure rate, small area demand;
  2. PLC control system, highly automatic;
  3. Optical fiber detects raw materials to reduce wastes. The mask making machine is fully automatic equipment for making medical masks. Therefore, only one operator is needed. This machine can realize the automatic production process from the coil feeding, folding and pressing forming, cutting, feeding ear belt and welding the ear loops;
  4. The mask making machine has the tally function. It can conduct the total counting and the batch counting. In addition, the batch counting quantity can be set arbitrarily;
  5. The ear loops are automatically welded on the mask body by ultrasonic wave;
  6. The nose-bridge bar can be cut automatically and be welded by ultrasonic wave.

Mechanical characteristics

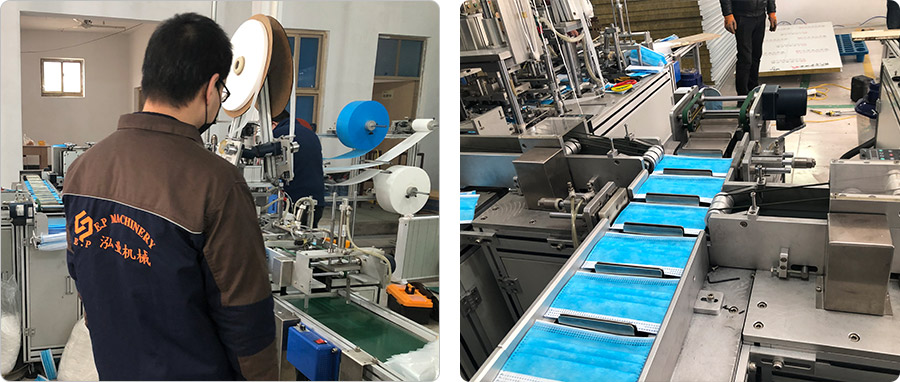

on-site test running

on-site test running

  1. Automatic tension control of raw materials will ensure balanced tension of the material.
  2. This mask making machine can produce masks from one-layer type to four-layer type. And the conveyor for the finished masks of the machine is 1200mm long.
  3. You can change the molds of the mask making machine to produce masks of different sizes and types.
  4. The surgical mask machine is made of aluminium alloy, so it it firm and durable.
