Punching Type Coal/charcoal Briquette Machine
Punching Type Coal/charcoal Briquette Machine
Punching Type Coal/charcoal Briquette Machine

Punching Type Coal/charcoal Briquette Machine

  • BrandE.P charcoal briquette machine
  • ColorBlue and so on
  • OriginChina
  • Capacity45-50 pcs/min
  • Power( KW)7.5
  • Diameter Of Mould(MM)120
  • Feeding Height(MM)930
Details

Product Description

Punching type coal/charcoal briquette machine is one of the coal/charcoal-forming processing equipment. Being assembled the different moulds, users can get the honeycomb round and cubic coal/charcoal beehive briquettes. The HSMQ Series Briquette Machine is not only applicable to single machine processing, but also to the large-scale coal/charcoal briquetting production line.

Originally, coa/charcoall Briquette Press only produced coal honeycomb briquettes. However, after our researching and developing, the final briquettes also can be punched press into hexagonal and round cylinder shape briquettes, which are widely used in BBQ field and shisha charcoal field. .

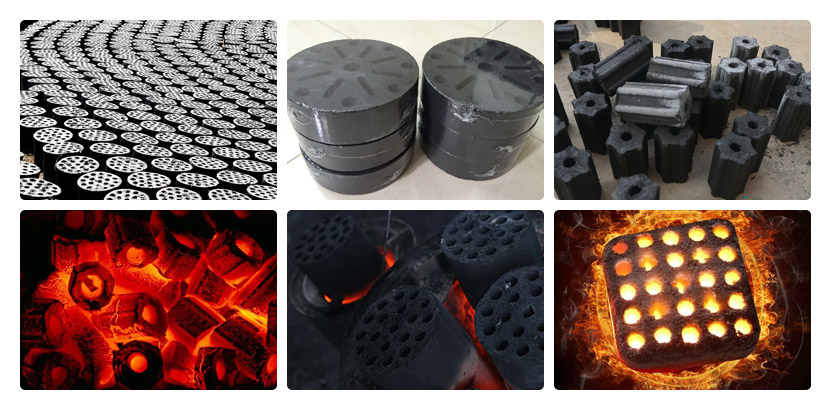

Finished Products

honeycomb briquettes

Finished honeycomb briquettes

Raw Material

Applicable raw materials

Applicable raw materials

Workflow

After the pressing process, the raw material charcoal/coal powder and binder will be pressed into solid briquettes. The basic processes are list as below. Not all these processes are necessary, it all depends on the situation of your raw materials. Please don’t hesitate o contact with us if you need any suggestion on charcoal briquettes production.

The workflow is like this:

Workflow of Honeycomb Briquettes Production Line

Advantages & Features

  1. 30 years manufacturing experiences;
  2. Stable and reliable performance;
  3. CNC processing mould;
  4. Flexible moulds customization;
  5. Production line expert consultation.

Advantages & Features

Model

HSMQ-01

HSMQ-02

HSMQ-03

HSMQ-04

Capacity

45-50 pcs/min

45-50 pcs/min

45-50 pcs/min

25 pcs/min

Power( KW)

7.5

7.5

7.5

11

Diameter Of Mould(MM)

120

140

160

220

Feeding Height(MM)

930

980

1000

1050

    You could fill out the form below and leave your contact information and product requirements, we will contact you ASAP. In order to get in touch with you in time, please complete your CONTACT INFORMATION and REQUIREMENTS.
