We have A wealth of project experience and can provide complete technical guidance and integrated installation services.
Flat appearance high density

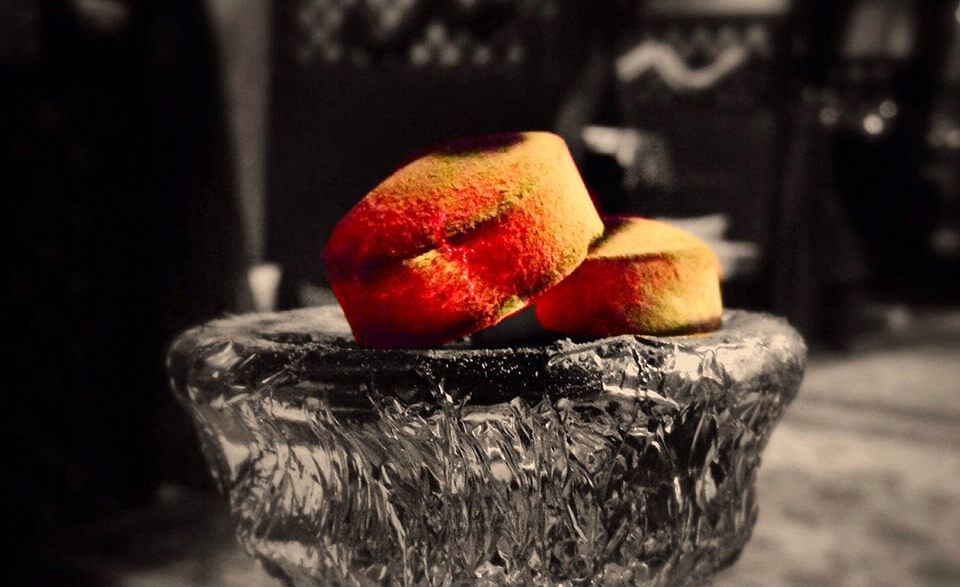

The finished shisha charcoal tablets produced by this machine are with high density, good appearance. Meanwhile, it is easy for combustion, no smell and long burning time. Because the mould is customizable, customers can make different shapes
of charcoal tablets based on their demand.
Applicable Raw Materials

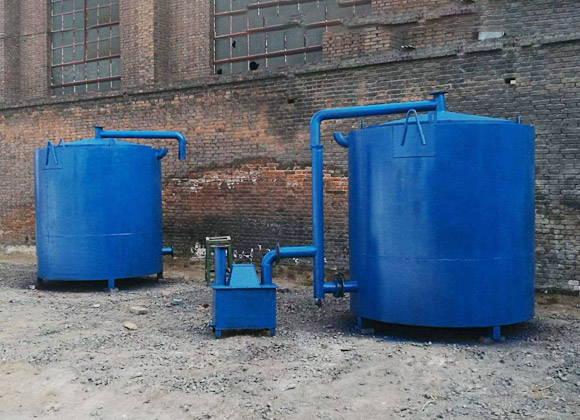

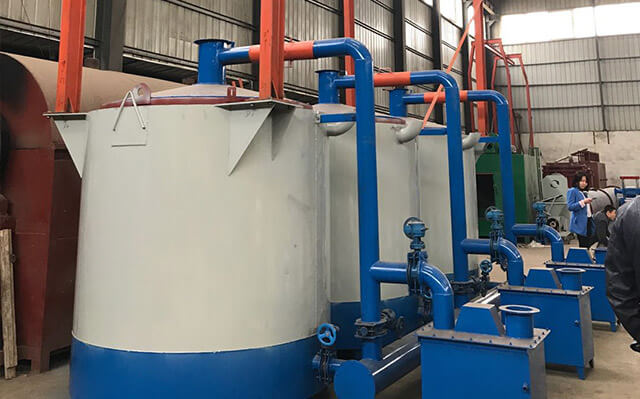

The raw material can be charcoal, coal, coke etc. In addition, if the raw material is biomass with lignin, such as coconut shell, bamboo, rice husk, sawdust etc. E.P company can supply different carbonization equipment to help customer
carbonize the raw material into charcoal for pressing.
Shisha Charcal Production Line Workflow
Through the high extruding pressure during the pressing process, the raw material charcoal powder and binder will be pressed into solid charcoal briquettes. The basic processes are list as below.
Not all these processes are necessary, it all depends on the situation of your raw materials. Please don't hesitate to contact with us if you need any suggestion on charcoal briquettes production.
For Charcoal materials size less than 5mm, they can be conveyed into mixing machine directly. If the charcoal size is above than 5mm, use the crushing machine first to mill them into fine size about 1-5mm, and then transport into the
Less than 5mm biomass material can be carbonized into charcoal by continuous furnace directly, then mixing and briquetting; The biomass materials larger than 5 mm and less than 30 mm need to be carbonized first, crushed, mixed and
Three types of shisha charcoal press machine can be available for users’ option. Users can choose the proper one based on production situation. For more details, contact E.P for further technical services.
PLAN 1 :Hydraulic working type
Hydraulic working type: cube and coin shape(round tablet shape), 22-50mm size can be available. The height is 10- 40mm.
Screw extruding working type: cube, hexagonal and various shapes. The mould can be customized according to clients’ needs. The pneumatic cutter and mechanical cutter can make the 25mm cube shisha charcoal easily. The advantage of screw
charcoal extruder has lower price.

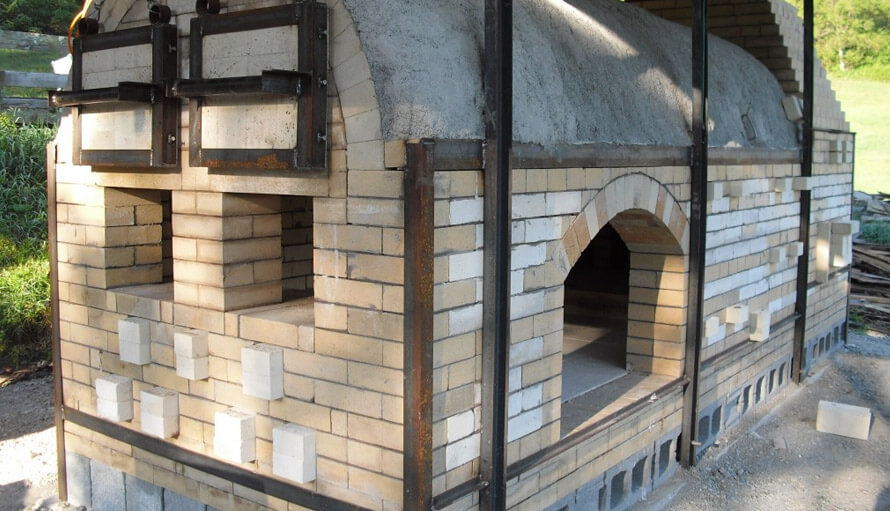

Building the drying room. If the user can build the drying house for reducing the moisture of charcoal briquettes, it is also a good choice for large scale charcoal briquette plant. Low cost and low power consumption.
